External Clamp Case2

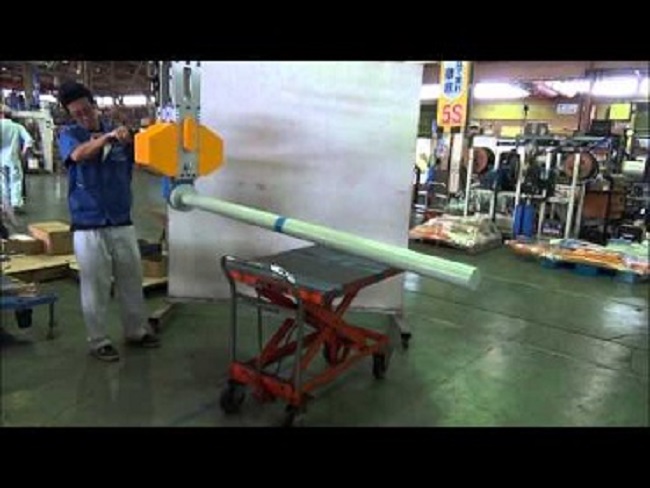

Designed for handling long shafts by clamping at one end. Equipped with a mechanism that enables the adjustment of inclination that occurs due to the weight of the shaft.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-150 (Special) |
| Main Body options |
|
| Pedestal model | - |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 80kg |
|---|---|
| Max. working radius | R1890mm |
| Operating air pressure | 0.54Mpa |
| Air consumption | 192NL/min（Approx. 15s cycle time） |
| Net weight(W/P not included) | 1092kg |
1kg≒2.205lb, 1mm≒0.03937in
