Hook Case1

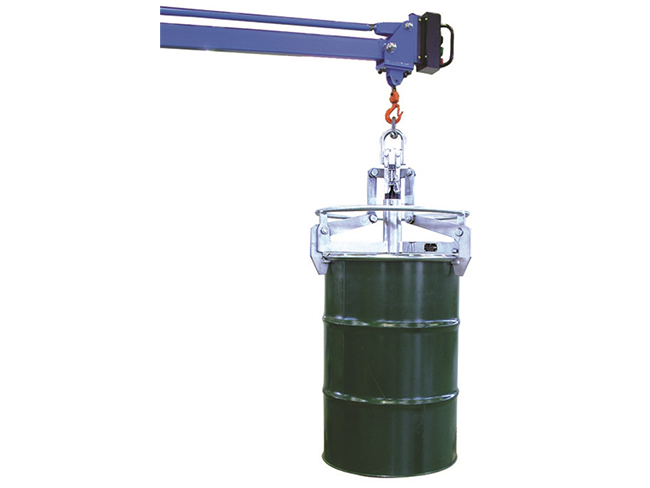

Using this manipulator, steel barrels can be effortlessly handled by hanging a commercially available barrel gripper on the hook.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMG-250 |
| Main Body options |
|
| Pedestal model | FSG-250（Floor mount） |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 230kg |
|---|---|
| Max. working radius | R2450mm |
| Operating air pressure | 0.49MPa |
| Air consumption | 250NL/min（Approx. 10s cycle time） |
| Net weight(W/P not included) | 630kg |
1kg≒2.205lb, 1mm≒0.03937in
