Vacuum Suction Case7

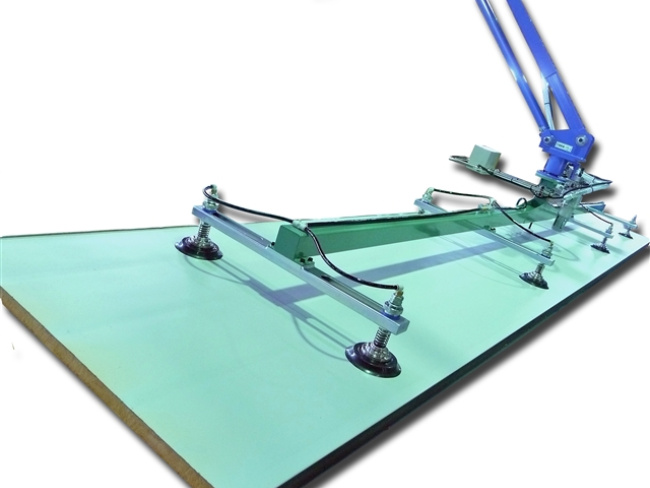

Designed for moving 6m long building boards horizontally. This end effector has an unique control method and is controlled by a remote control.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMF-375W（4W）(Special) |
| Main Body options |
|
| Pedestal model | FSF-375（Floor mount）(Special) ・Vacuum Pump mounted |
| Control method | Vertical crane, Horizontal drive |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 100kg |
|---|---|
| Max. working radius | About 3638mm (Max. working height) |
| Operating air pressure | 0.65MPaG |
| Air consumption | 335NL/min（Approx. 15s cycle time） |
| Power supply | AC200V 50/60Hz AC220V-60Hz |
| Rated current | 5.3/5.2A 5.2A |
| Net weight(W/P not included) | 920kg |
1kg≒2.205lb, 1mm≒0.03937in
