Vacuum Suction Case 17

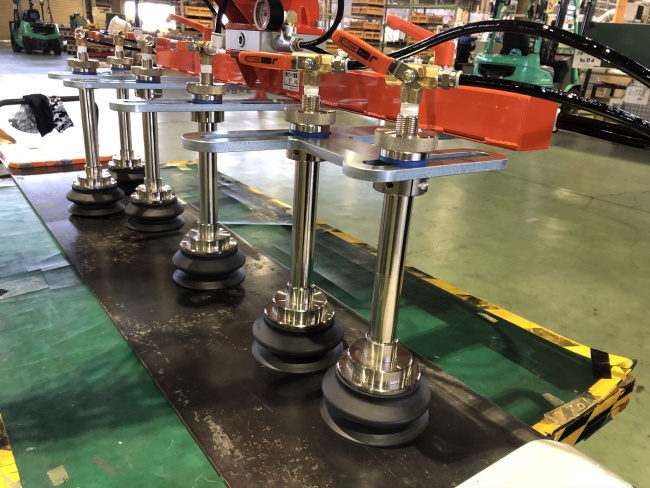

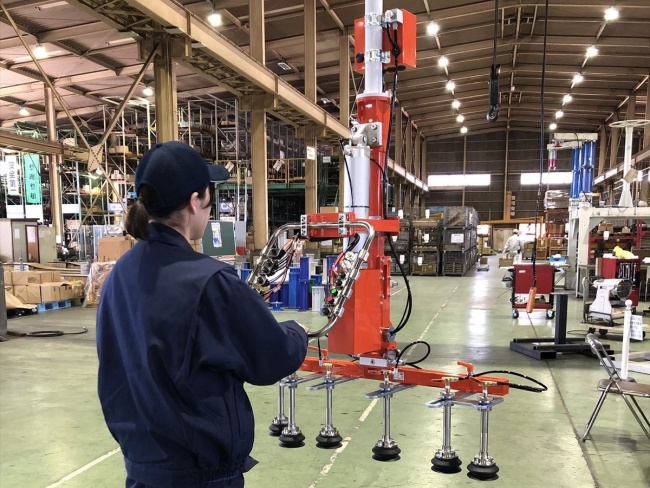

This manipulator is designed to lift sheet metal that are placed on a trolley and place them on top of a workbench after turn them by 90°.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-150 |
| Main Body options |
|
| Pedestal model | FSS-150(Floor mount) |

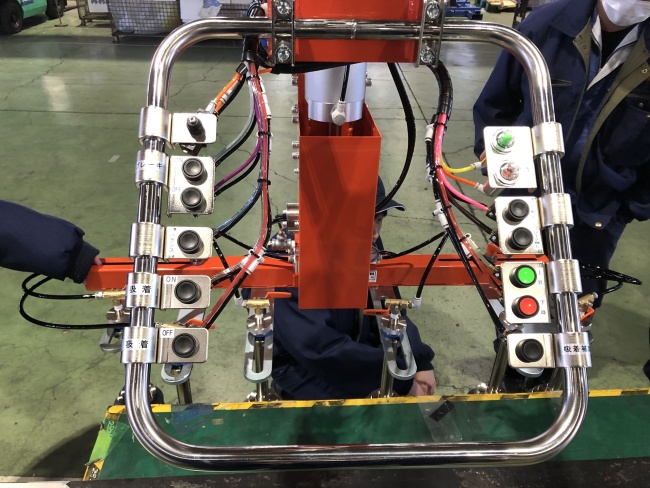

| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 27kg |
|---|---|
| Max. working radius | R2818mm |
| Operating air pressure | 0.54MpaG |
| Air consumption | 192NL/min （Approx. 15s cycle time） |
1kg≒2.205lb, 1mm≒0.03937in
