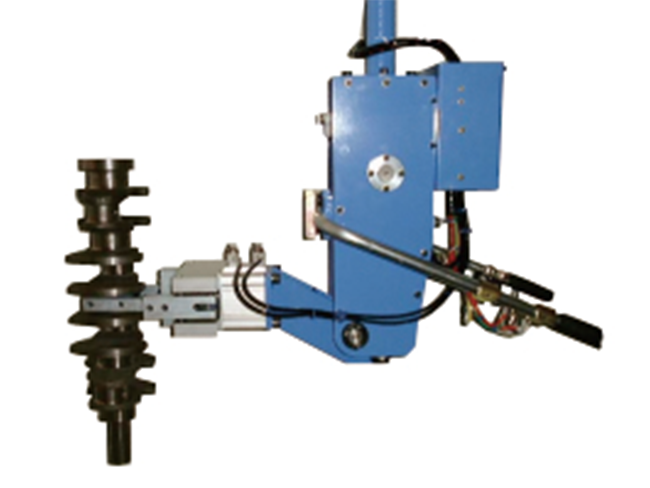

External Clamp Case5
Designed and developed for handling automobile crankshafts. Since this end effector is equipped with mechanisms that clamp the outside of the crankshaft and invert it, changing the orientation of the workpiece is effortless.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-75C |
| Main Body options |
|
| Pedestal model | CSS-75(Ceiling mount) |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 25kg |
|---|---|
| Max. working radius | R2457mm |
| Operating air pressure | 0.49MPa |
| Net weight(W/P not included) | 300kg |
1kg≒2.205lb, 1mm≒0.03937in
